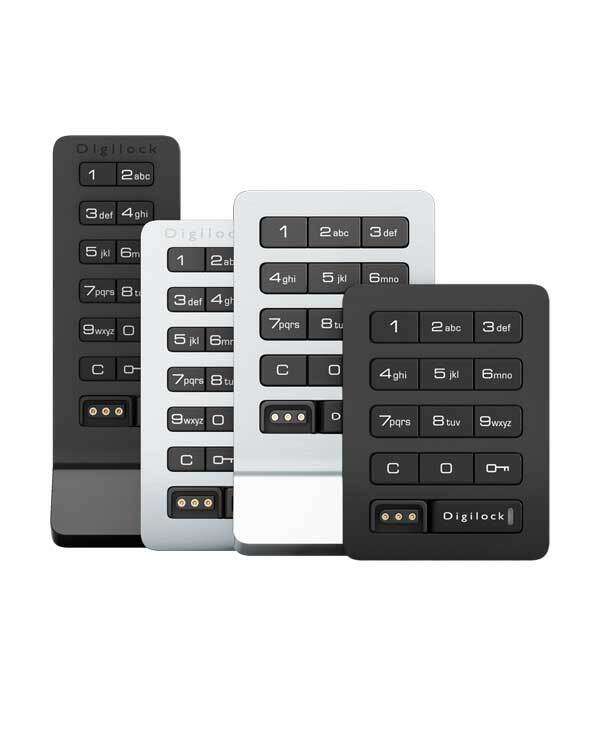

Aspire code lock range

Locker accessories 600x740 digilock keys

Management keys

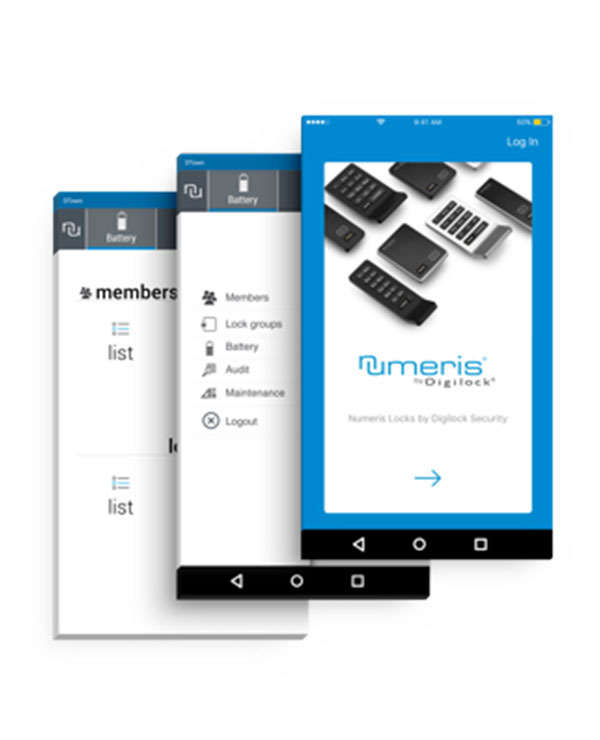

Locker accessories lockin 700x640 0002s 0003s 0000 Digilock app

Optional mobile sofware

Digilock Aspire code lock

This Digilock Aspire code lock is a DDA accessible battery-operated locker lock by Digilock. It can be programmed in shared or fixed user modes with optional automatic opening. The Aspire is available in brushed nickel and black with or without a pull handle. It features optional programming software, a key for emergency access and low power consumption providing 3-5 years of battery life.

Download brochure

Buying locker locks from Lockin?

Need 1 lock or 1,000? No problem! Choose your lock, and we’ll ship it to you anywhere within Australia.

Specifications

Type	Battery operated
Mode	Dedicated and shared
Finish	Brushed nickel or Black
Accessible (DDA)	Yes
Water resistance	IP55 rated
Auto unlock	Yes (countdown from 1-99 hours or time eg. 5:30pm every day)
Material	Metal
Door thickness	1mm - 30mm
Fitting	Left and right handed
Locking mechanism	Deadbolt or latch
Retrofittable	Yes
Battery life	180,000 cycles (3-5 years approx)
Battery type	4 x AA batteries (included)
Lock manufacturer	Digilock

Wide body

Height	72 mm
Height with handle	98 mm
Width	54 mm
Depth	8 mm

Narrow body

Height	88 mm
Height with handle	113 mm
Width	35 mm
Depth	8 mm

Features

- Can be programmed in shared or dedicated user modes.	- IP55 rated, resistant to direct water contact and humidity.
- Use a fixed or one time 4-digit user code.	- Standard finishes of brushed nickel and black.
- Set automatic unlock timer to open after 1 to 99 hours.	- Custom finishes available upon request.
- Set auto-unlock timer at a specific time eg 6PM Fri.	- Can operate with an ADA compliant user key.
- Manager and programming keys.	- DDA accessible.
- Available in narrow or wide body.	- Optional deadbolt or latch mechanism.
- Upgrade option available to electronic key & tablet system for easier, more detailed management.	- Electronic keys offer external power, audit, and override capability including emergency access.
- Battery life of 180,000 cycles lasting between 3-5 years.	- Optional mobile management software (Android).
- Available in vertical and horizontal body styles.	- Audit trail (requires software).
- Available with or without pull handle.	- Low battery warning and detection.
- Compatible with wood, plastic & metal locker doors.

How it works

User operated through a 4 digit code or ADA compliant user key.
User code can be fixed or one time use.
Manager access with a master key.
Can switch between functionalities of shared or dedicated.
Auto unlock can be set for 1-99 hours after locking.
Set auto-unlock timer at a specific time eg 6PM Fri.
Can be programmed via an Android device and programming key.

Warranty

The code lock comes with a 2 year standard warranty.

Downloads

Product specifications

Specifications

Type	Battery operated
Mode	Dedicated and shared
Finish	Brushed nickel or Black
Accessible (DDA)	Yes
Water resistance	IP55 rated
Auto unlock	Yes (countdown from 1-99 hours or time eg. 5:30pm every day)
Material	Metal
Door thickness	1mm - 30mm
Fitting	Left and right handed
Locking mechanism	Deadbolt or latch
Retrofittable	Yes
Battery life	180,000 cycles (3-5 years approx)
Battery type	4 x AA batteries (included)
Lock manufacturer	Digilock

Dimensions

Wide body

Height	72 mm
Height with handle	98 mm
Width	54 mm
Depth	8 mm

Narrow body

Height	88 mm
Height with handle	113 mm
Width	35 mm
Depth	8 mm

Features

- Can be programmed in shared or dedicated user modes.	- IP55 rated, resistant to direct water contact and humidity.
- Use a fixed or one time 4-digit user code.	- Standard finishes of brushed nickel and black.
- Set automatic unlock timer to open after 1 to 99 hours.	- Custom finishes available upon request.
- Set auto-unlock timer at a specific time eg 6PM Fri.	- Can operate with an ADA compliant user key.
- Manager and programming keys.	- DDA accessible.
- Available in narrow or wide body.	- Optional deadbolt or latch mechanism.
- Upgrade option available to electronic key & tablet system for easier, more detailed management.	- Electronic keys offer external power, audit, and override capability including emergency access.
- Battery life of 180,000 cycles lasting between 3-5 years.	- Optional mobile management software (Android).
- Available in vertical and horizontal body styles.	- Audit trail (requires software).
- Available with or without pull handle.	- Low battery warning and detection.
- Compatible with wood, plastic & metal locker doors.

How it works

User operated through a 4 digit code or ADA compliant user key.
User code can be fixed or one time use.
Manager access with a master key.
Can switch between functionalities of shared or dedicated.
Auto unlock can be set for 1-99 hours after locking.
Set auto-unlock timer at a specific time eg 6PM Fri.
Can be programmed via an Android device and programming key.

Warranty

The code lock comes with a 2 year standard warranty.

Downloads

Lock body options

The Aspire code lock is available in 2 finishes brushed nickel and with or without an integrated handle.

Locker locks 600x740 lockin 0002s 0003s 0004 nu aspire std Kypd no Pull 3 Q brshd

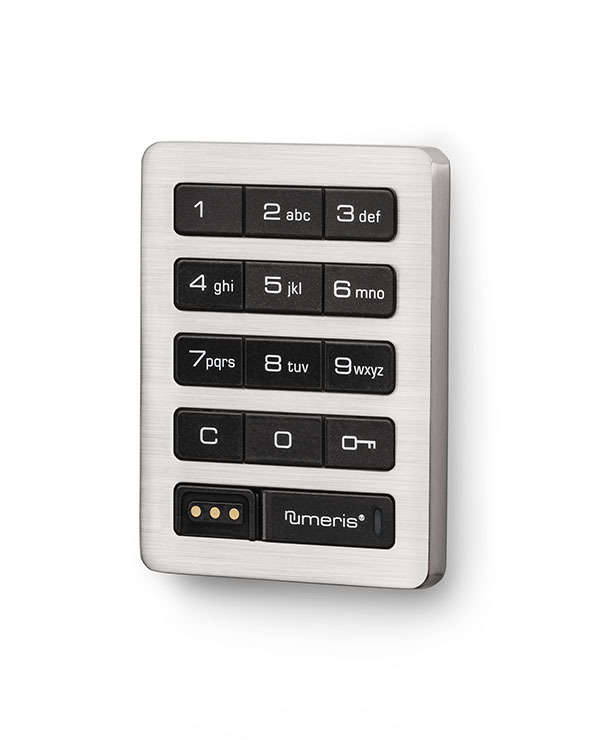

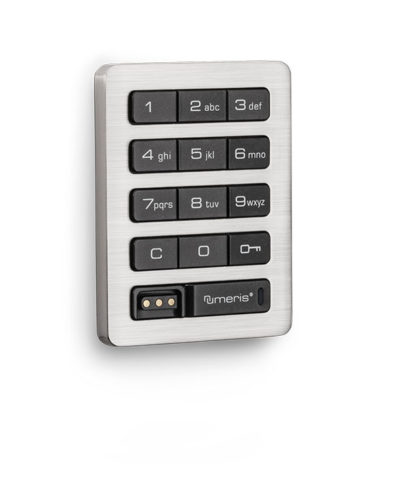

Brushed nickel wide no handle

Locker locks 600x740 lockin 2 aspire keypad silver wide handle angle

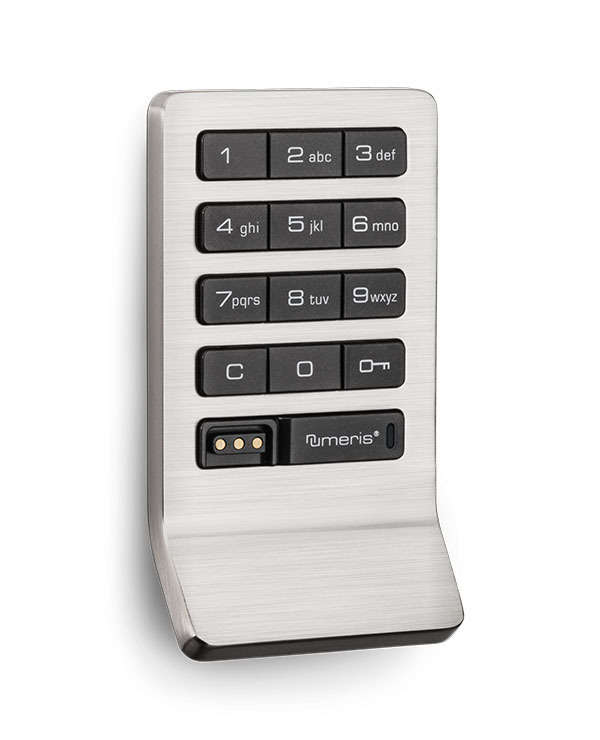

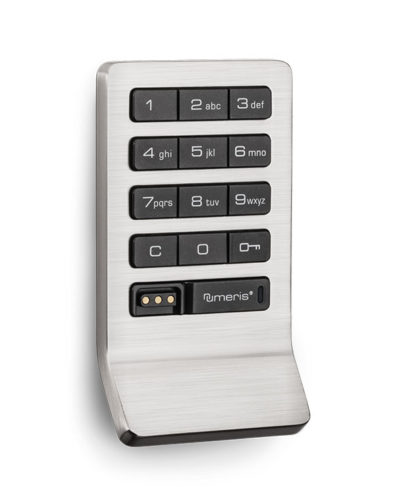

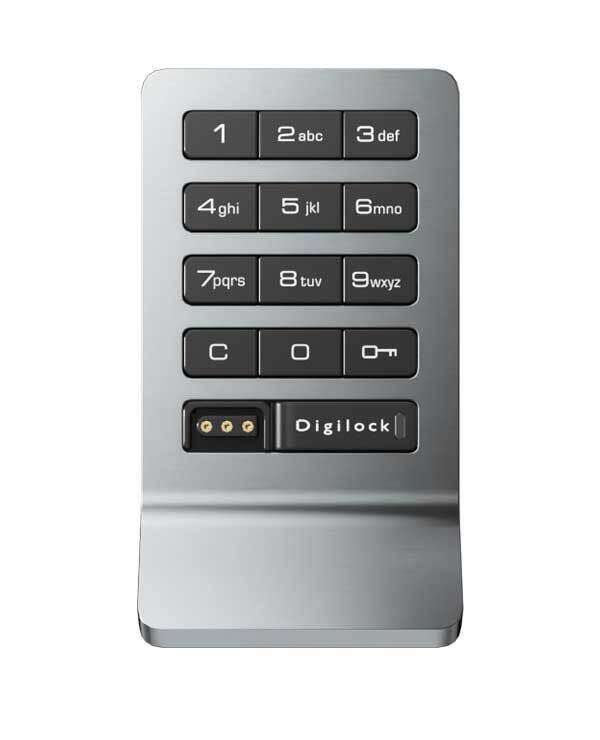

Brushed nickel wide handle

Locker locks 600x740 lockin 0002s 0003s 0003 nu aspire std Kypd no Pull 3 Q blk

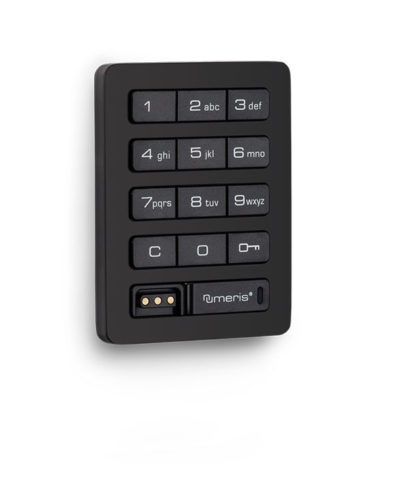

Black wide no handle

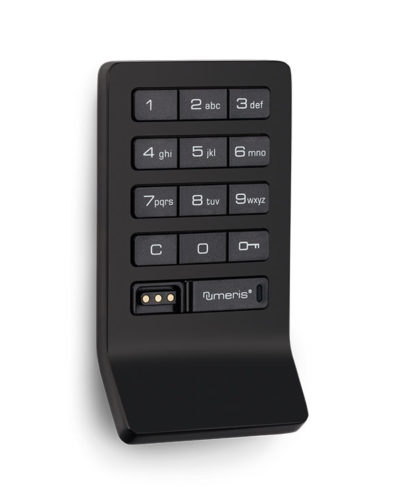

Black wide handle

Locker locks 600x740 lockin aspire keypad silver narrow angle

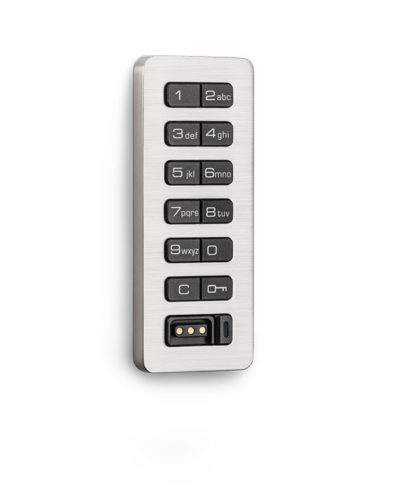

Brushed nickel narrow no handle

Locker locks 600x740 lockin aspire keypad silver narrow handle angle

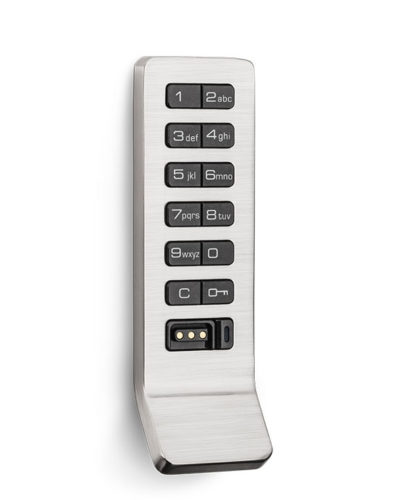

Brushed nickel narrow handle

Locker locks 600x740 lockin aspire keypad black narrow angle

Black narrow no handle

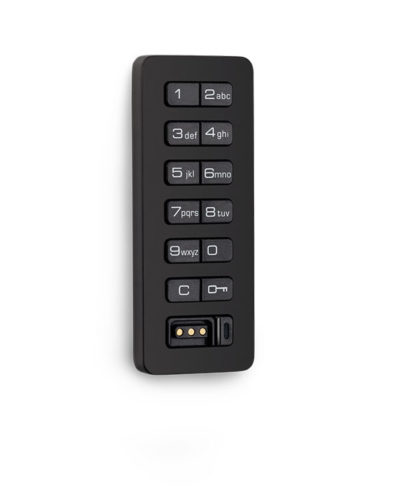

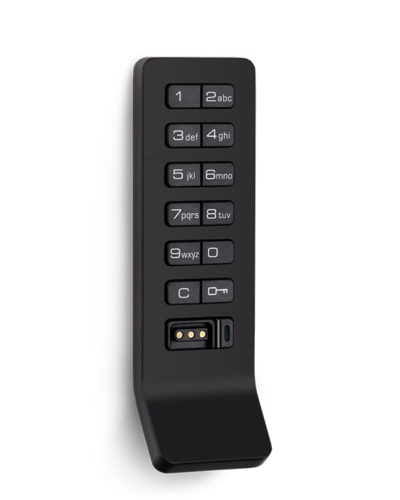

Black narrow handle

Lock motor options

The Aspire code lock is available with two rear unit motors for shared or dedicated modes.

Locker accessories 600x740 digilock 1 Digilock 5g back bolt 0003 Digilock 4

Deadbolt

Recommended for shared and dedicated use lockers.

Locker accessories 600x740 digilock 1 Digilock 5g back bolt 0001 Digilock 2

Latch

Recommended for dedicated-use lockers.

FAQs

How do I choose the best lock for my space?

With so many locks on the market, it can be hard to choose the best one for your space. Start by identifying which features you need. Consider how many lockers you'll have, how the space will be used and the security requirements of your space. If you're not sure, just speak to our team!

What is the difference between shared and dedicated user modes?

Locker locks are programmed in different modes to suit the spaces they operate in. In shared mode, the user finds an available locker and operates it with a single-use code or key. In dedicated mode, the locker belongs to one person who operates it with a permanent code or key.

How much are locker locks?

Locker locks range from $20 up to $350 each. This means there is a lock for every price point! When purchasing a lock, it's important to consider features vs cost. Does the lock do what you need it to do? What are the associated lifetime costs? If you're not sure, our team can help you find the best lock for you.

Where does Lockin deliver?

Lockin delivers locks anywhere in Australia and New Zealand. Whether you're looking for one lock or one thousand we can help! Plus our team can assist you with programming, installation, training, and ongoing support.
