Range code & RFID lock

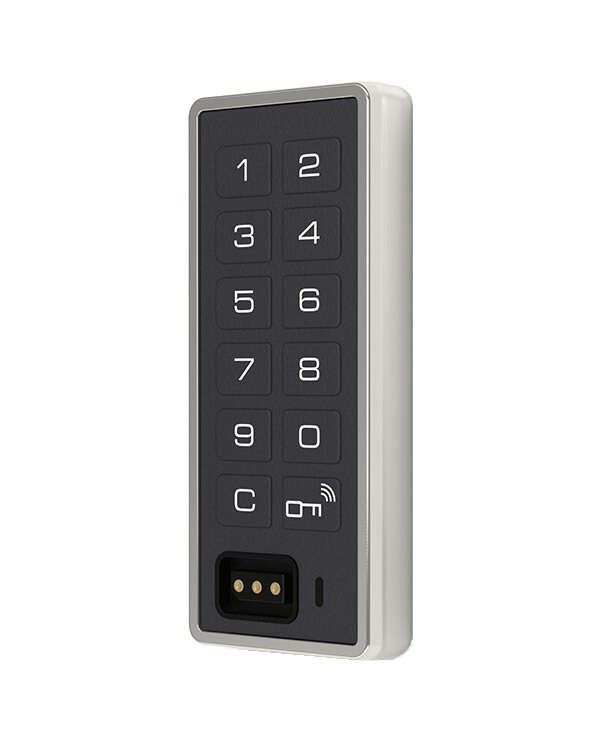

The Range lock is a battery powered digital locker lock that can be operated with the keypad or RFID. Programmable in shared or fixed user modes, locker uses can operate the lock with a code or with RFID media such as a card, key fob or sticker. It features an override key for emergency access and low power consumption for 3-5 years of use.

Send an enquiry Download brochure
Icon trolley 01
Buying locker locks from Lockin?

Need 1 lock or 1,000? No problem! Choose your lock, and we’ll ship it to you anywhere within Australia.

Specifications

Type Battery operated
Mode Dedicated and shared
Finish Brushed nickel
Accessible (DDA) Yes
Water resistance IP55 rated
Auto unlock No
RFID standards ISO 14443A, ISO 14443B, ISO 15693
Material Metal and plastic
Door thickness 1mm - 30mm
Fitting Left and right handed
Locking mechanism Deadbolt or latch
Retrofittable Yes
Battery life 124,500 cycles for Keypad & 75,000 cycles for RFID (3-5 years approx)
Battery type 4 x AA batteries (included)

Square lock

Height 70 mm
Width 54 mm
Depth 12.5 mm

Rectangle lock

Height 86 mm
Width 35 mm
Depth 12.7 mm

Features

- Can be programmed in shared or dedicated user modes. - DDA accessible.
- Master key for emergency access. - IP55 rated, resistant to direct water contact and humidity.
- Programming keys to change lock functionality. - Brushed nickel finish
- Available in square and rectangle body styles. - Metal housing with integrated pull handle.
- Battery life between 3-5 years. - Visual & audible indicators.
- Can operate with an ADA compliant user key. - Compatible with wood, plastic & metal locker doors.
- Master key can charge lock in case of battery drain. - Optional deadbolt or latch mechanism.
- Works with 13.56 MHz iClass and Mifare standards. Including ISO 14443A, ISO 14443B, ISO 15693. - Can be retrofitted.

How it works

User operated with a 4 digit code or RFID media card, key or sticker.
Code or RFID media can be fixed or one time use.
Can operate with an ADA compliant user key.
Manager access with a manager key.

Warranty

The Range lock comes with a 1 year standard warranty.
Product specifications

Specifications

Type Battery operated
Mode Dedicated and shared
Finish Brushed nickel
Accessible (DDA) Yes
Water resistance IP55 rated
Auto unlock No
RFID standards ISO 14443A, ISO 14443B, ISO 15693
Material Metal and plastic
Door thickness 1mm - 30mm
Fitting Left and right handed
Locking mechanism Deadbolt or latch
Retrofittable Yes
Battery life 124,500 cycles for Keypad & 75,000 cycles for RFID (3-5 years approx)
Battery type 4 x AA batteries (included)
Dimensions

Square lock

Height 70 mm
Width 54 mm
Depth 12.5 mm

Rectangle lock

Height 86 mm
Width 35 mm
Depth 12.7 mm
Features

Features

- Can be programmed in shared or dedicated user modes. - DDA accessible.
- Master key for emergency access. - IP55 rated, resistant to direct water contact and humidity.
- Programming keys to change lock functionality. - Brushed nickel finish
- Available in square and rectangle body styles. - Metal housing with integrated pull handle.
- Battery life between 3-5 years. - Visual & audible indicators.
- Can operate with an ADA compliant user key. - Compatible with wood, plastic & metal locker doors.
- Master key can charge lock in case of battery drain. - Optional deadbolt or latch mechanism.
- Works with 13.56 MHz iClass and Mifare standards. Including ISO 14443A, ISO 14443B, ISO 15693. - Can be retrofitted.
How it works

How it works

User operated with a 4 digit code or RFID media card, key or sticker.
Code or RFID media can be fixed or one time use.
Can operate with an ADA compliant user key.
Manager access with a manager key.
Warranty

Warranty

The Range lock comes with a 1 year standard warranty.

Lock motor options

The Range code lock is available with two rear unit motors for shared or dedicated modes.

Locker accessories 600x740 digilock 1 Digilock 5g back bolt 0003 Digilock 4

Deadbolt

Recommended for shared and dedicated use lockers.

Locker accessories 600x740 digilock 1 Digilock 5g back bolt 0001 Digilock 2

Latch

Recommended for dedicated-use lockers.

FAQs

How do I choose the best lock for my space?

With so many locks on the market, it can be hard to choose the best one for your space. Start by identifying which features you need. Consider how many lockers you'll have, how the space will be used and the security requirements of your space. If you're not sure, just speak to our team!

What is the difference between shared and dedicated user modes?

Locker locks are programmed in different modes to suit the spaces they operate in. In shared mode, the user finds an available locker and operates it with a single-use code or key. In dedicated mode, the locker belongs to one person who operates it with a permanent code or key.

How much are locker locks?

Locker locks range from $20 up to $350 each. This means there is a lock for every price point! When purchasing a lock, it's important to consider features vs cost. Does the lock do what you need it to do? What are the associated lifetime costs? If you're not sure, our team can help you find the best lock for you.

Where does Lockin deliver?

Lockin delivers locks anywhere in Australia and New Zealand. Whether you're looking for one lock or one thousand we can help! Plus our team can assist you with programming, installation, training, and ongoing support.
