For Wherever You Work, Play, Learn, and Live

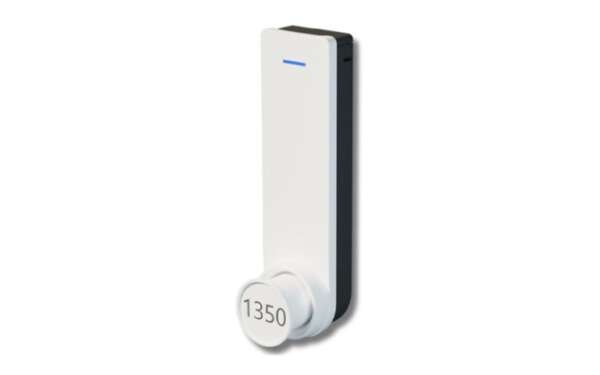

Gantner GL7p lock rfid

RFID lock

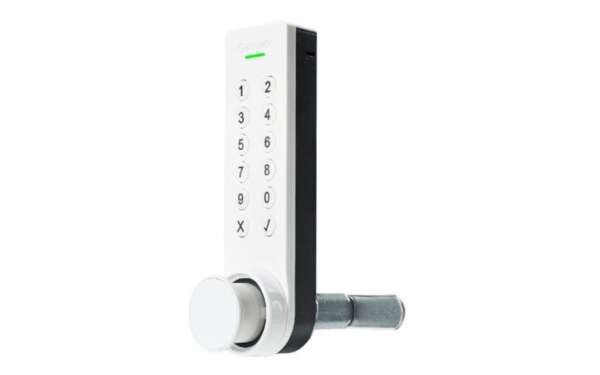

Gantner GL7p lock code

Code lock

Gantner GL7p Smart lock

The Gantner GL7p is a battery-operated electronic lock with a pincode or RFID face. Combined with intelligent software, the GL7p can be programmed to use existing RFID cards, providing users with RFID proximity media access to their personal storage locker. Its identical drilling template as typical cam locks enables easy replacement for retrofits. It offers a service life of up to 10 years from its 1 x lithium battery.

Send an enquiry Download brochure
Icon trolley 01
Buying locker locks from Lockin?

Need 1 lock or 1,000? No problem! Choose your lock, and we’ll ship it to you anywhere within Australia.

Specifications

Type Battery operated
Mode Dedicated and shared
Finish White
RFID Standards MIFARE, ISO 15693, NFC and HID iCLASS
Accessible (DDA) No
Material Metal and plastic
Door thickness 1mm – 30mm
Fitting Left and right handed
Locking mechanism Pin lock
Retrofittable Yes
Battery life Up to 10 years
Battery type 1 lithium battery
Lock manufacturer Gantner

Dimensions - Card

Height 84 mm
Width 52 mm
Depth 1 mm

Dimensions - Lock

Height 140 mm
Width 37,7 mm
Depth 19 mm

Features

- Lock can be set to dedicated user or shared. - Manager key for emergency access.
- Different user groups and security levels can be programmed. - Access can be set to zones, levels or number of lockers.
- USB interface for configuration. - Status LED and sound signal
Multi-RFID technology reader for: Mifare, Legic, ISO 15693, HID - Locks can be integrated with other building access control systems.
- User operated through an RFID media card, key, phone or sticker directly at the locker door. - Locks are programmed, managed and monitored with desktop software.
- Large round push button clearly indicates the lock and occupation status of the locker. - Keypad for vertical and horizontal installation.
- 1 x lithium battery for a service life of up to 10 years approx.

How it works

Operated through an RFID media card, key, phone or sticker directly at the locker door.
User code can be fixed or one time use.
Lock can be set to dedicated user or shared.

Warranty

The lock comes with a 1 year standard warranty.

Downloads

Product specifications

Specifications

Type Battery operated
Mode Dedicated and shared
Finish White
RFID Standards MIFARE, ISO 15693, NFC and HID iCLASS
Accessible (DDA) No
Material Metal and plastic
Door thickness 1mm – 30mm
Fitting Left and right handed
Locking mechanism Pin lock
Retrofittable Yes
Battery life Up to 10 years
Battery type 1 lithium battery
Lock manufacturer Gantner
Dimensions

Dimensions - Card

Height 84 mm
Width 52 mm
Depth 1 mm

Dimensions - Lock

Height 140 mm
Width 37,7 mm
Depth 19 mm
Features

Features

- Lock can be set to dedicated user or shared. - Manager key for emergency access.
- Different user groups and security levels can be programmed. - Access can be set to zones, levels or number of lockers.
- USB interface for configuration. - Status LED and sound signal
Multi-RFID technology reader for: Mifare, Legic, ISO 15693, HID - Locks can be integrated with other building access control systems.
- User operated through an RFID media card, key, phone or sticker directly at the locker door. - Locks are programmed, managed and monitored with desktop software.
- Large round push button clearly indicates the lock and occupation status of the locker. - Keypad for vertical and horizontal installation.
- 1 x lithium battery for a service life of up to 10 years approx.
How it works

How it works

Operated through an RFID media card, key, phone or sticker directly at the locker door.
User code can be fixed or one time use.
Lock can be set to dedicated user or shared.
Warranty

Warranty

The lock comes with a 1 year standard warranty.
Downloads

Downloads

FAQs

How do I choose the best lock for my space?

With so many locks on the market, it can be hard to choose the best one for your space. Start by identifying which features you need. Consider how many lockers you'll have, how the space will be used and the security requirements of your space. If you're not sure, just speak to our team!

What is the difference between shared and dedicated user modes?

Locker locks are programmed in different modes to suit the spaces they operate in. In shared mode, the user finds an available locker and operates it with a single-use code or key. In dedicated mode, the locker belongs to one person who operates it with a permanent code or key.

How much are locker locks?

Locker locks range from $20 up to $350 each. This means there is a lock for every price point! When purchasing a lock, it's important to consider features vs cost. Does the lock do what you need it to do? What are the associated lifetime costs? If you're not sure, our team can help you find the best lock for you.

Where does Lockin deliver?

Lockin delivers locks anywhere in Australia and New Zealand. Whether you're looking for one lock or one thousand we can help! Plus our team can assist you with programming, installation, training, and ongoing support.
