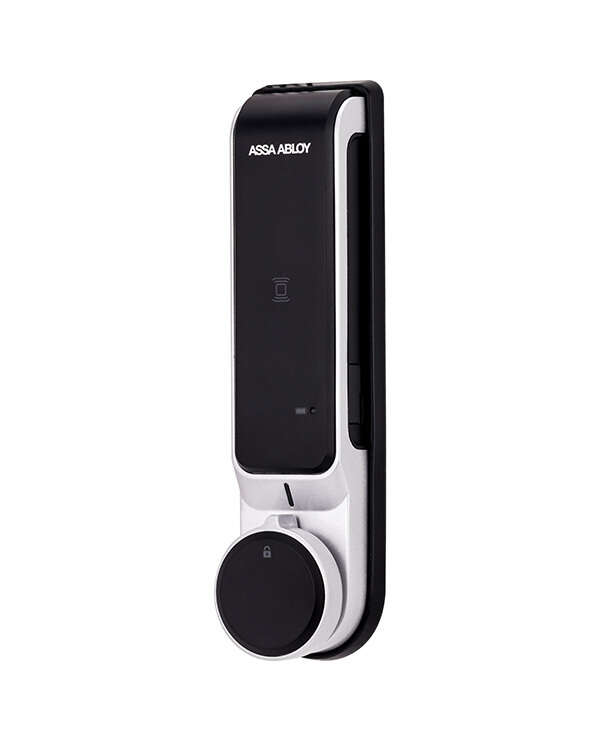

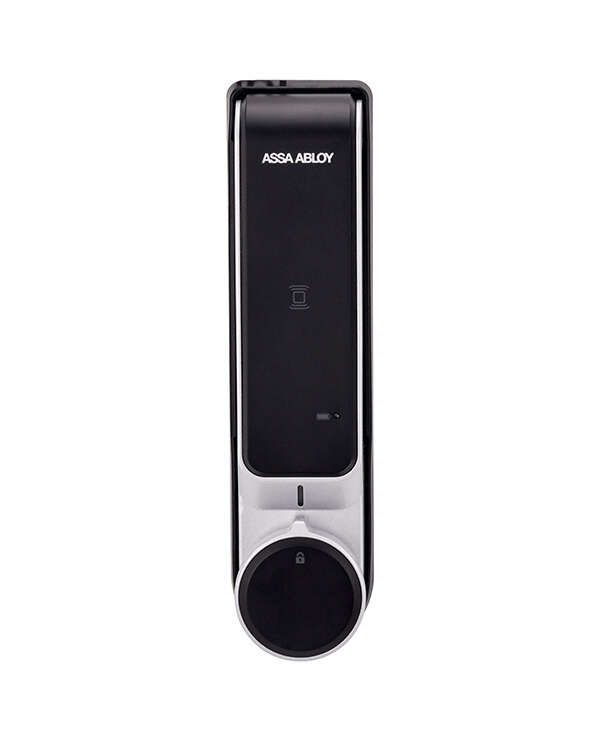

ML5000 RFID lock

The ASSA ABLOY ML5000 RFID lock is a battery-operated digital locker lock that can be programmed in shared or fixed user modes. It supports 13.56MHz, ISO14443A MIFARE Classic, Ultralight, DESFireEV1 RFID frequencies and features an override code for emergency access.

Send an enquiry Download brochure
Icon trolley 01
Buying locker locks from Lockin?

Need 1 lock or 1,000? No problem! Choose your lock, and we’ll ship it to you anywhere within Australia.

Specifications

Type Battery operated
Mode Dedicated and shared
Finish Silver
Accessible (DDA) No
RFID standards 13.56MHz, ISO14443A MIFARE Classic, Ultralight, DESFireEV1
Material Metal and plastic
Door thickness 1mm - 23mm
Fitting Left and right handed
Locking mechanism Cam lock
Retrofittable Yes
Battery life 1 year
Battery type 3 x AAA batteries

Dimensions

Height 158 mm
Width 40 mm
Depth 31 mm

Features

- Can be programmed in shared or dedicated user modes. - Battery life of 1 year.
- User operated through an RFID media card, key or sticker. - Flat and offset cam lock options.
- Master code for emergency access. - Compatible with wood, plastic & metal locker doors.
- Available in vertical and horizontal body styles. - Handle position shows if locker is occupied or available.
- Micro USB battery back up. - Supports 13.56MHz, ISO14443A MIFARE Classic, Ultralight, DESFireEV1.
- Accepts up to 20 Administration Cards, 20 Master Cards and 20 User Cards per lock

How it works

User operated through an RFID media card, key or sticker.
RFID media can be fixed or one time use.
Manager access with a manager RFID key.
Can switch between functionalities of shared or dedicated.

Warranty

The code lock comes with a 1 year standard warranty.
Product specifications

Specifications

Type Battery operated
Mode Dedicated and shared
Finish Silver
Accessible (DDA) No
RFID standards 13.56MHz, ISO14443A MIFARE Classic, Ultralight, DESFireEV1
Material Metal and plastic
Door thickness 1mm - 23mm
Fitting Left and right handed
Locking mechanism Cam lock
Retrofittable Yes
Battery life 1 year
Battery type 3 x AAA batteries

Dimensions

Height 158 mm
Width 40 mm
Depth 31 mm
Features

Features

- Can be programmed in shared or dedicated user modes. - Battery life of 1 year.
- User operated through an RFID media card, key or sticker. - Flat and offset cam lock options.
- Master code for emergency access. - Compatible with wood, plastic & metal locker doors.
- Available in vertical and horizontal body styles. - Handle position shows if locker is occupied or available.
- Micro USB battery back up. - Supports 13.56MHz, ISO14443A MIFARE Classic, Ultralight, DESFireEV1.
- Accepts up to 20 Administration Cards, 20 Master Cards and 20 User Cards per lock
How it works

How it works

User operated through an RFID media card, key or sticker.
RFID media can be fixed or one time use.
Manager access with a manager RFID key.
Can switch between functionalities of shared or dedicated.
Warranty

Warranty

The code lock comes with a 1 year standard warranty.

FAQs

How do I choose the best lock for my space?

With so many locks on the market, it can be hard to choose the best one for your space. Start by identifying which features you need. Consider how many lockers you'll have, how the space will be used and the security requirements of your space. If you're not sure, just speak to our team!

What is the difference between shared and dedicated user modes?

Locker locks are programmed in different modes to suit the spaces they operate in. In shared mode, the user finds an available locker and operates it with a single-use code or key. In dedicated mode, the locker belongs to one person who operates it with a permanent code or key.

How much are locker locks?

Locker locks range from $20 up to $350 each. This means there is a lock for every price point! When purchasing a lock, it's important to consider features vs cost. Does the lock do what you need it to do? What are the associated lifetime costs? If you're not sure, our team can help you find the best lock for you.

Where does Lockin deliver?

Lockin delivers locks anywhere in Australia and New Zealand. Whether you're looking for one lock or one thousand we can help! Plus our team can assist you with programming, installation, training, and ongoing support.
